Restrictions

Restrictions define coordinated items between neighboring sectors and facilities. They specify the conditions under which coordination is required and the coordinated items.

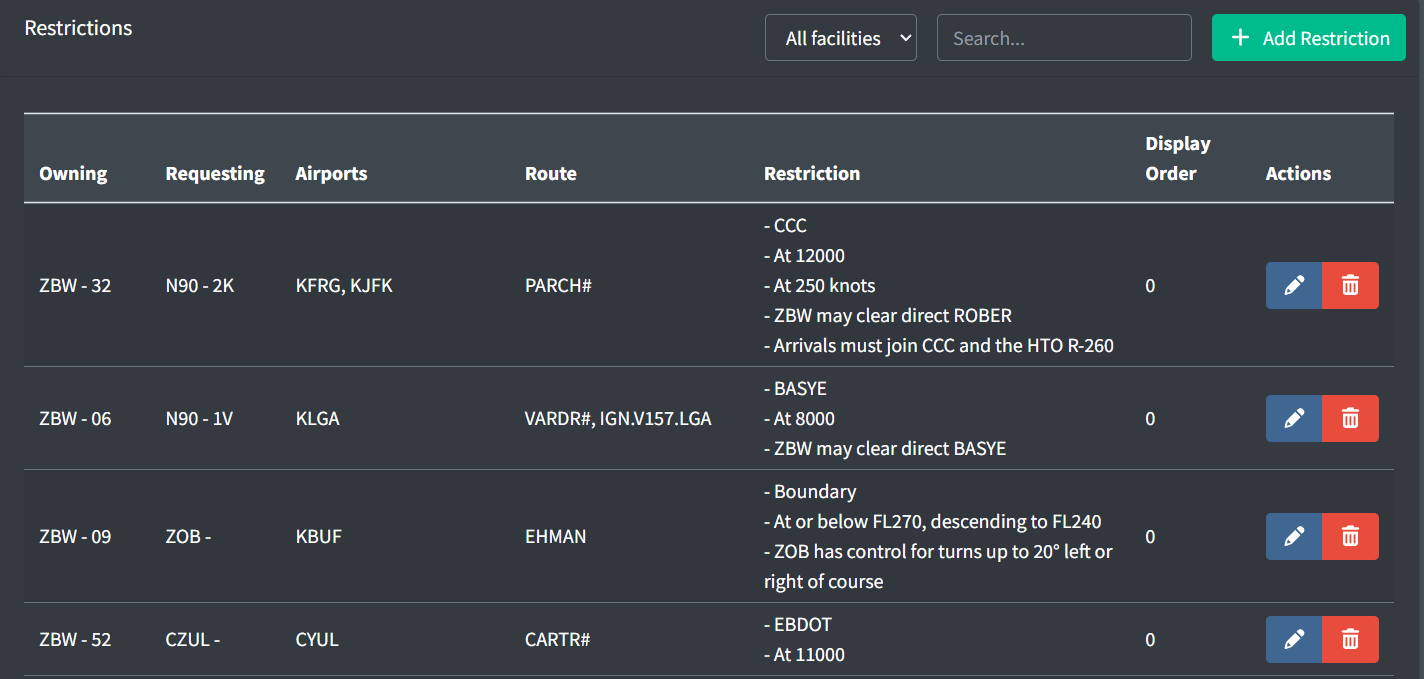

Fig. 1 - Restrictions list

Airport Groups

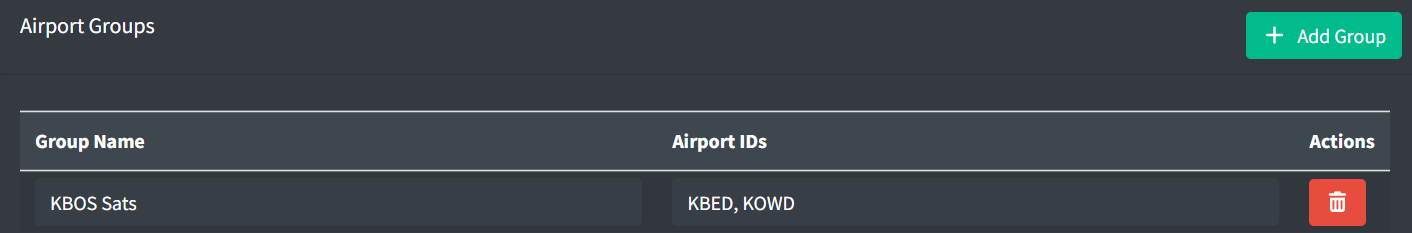

Fig. 2 - Airport groups

Airport groups logically group airports, such as by location or relationship. An airport group name can be included in a restriction to specify the restriction applies to all airports in the group.

An airport group contains the following fields:

• Group Name: the name of the group used to indicate all included airports.

• Airport IDs: the list of IDs of the airports belonging to the group.

Adding a Restriction

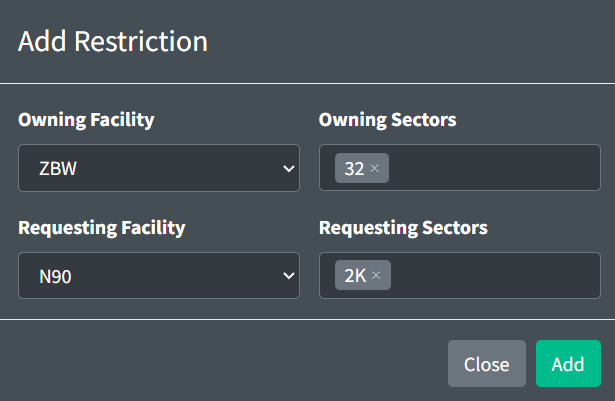

Fig. 3 - Adding a restriction

When adding a restriction, you must specify the owning and requesting facilities. The owning facility is the facility responsible for applying the restriction. The requesting facility is the downstream facility requesting the restriction be applied by the owning facility. The owning and requesting facilities may be the same if the restriction is internal. Owning and requesting sectors may be specified, but are optional.

General

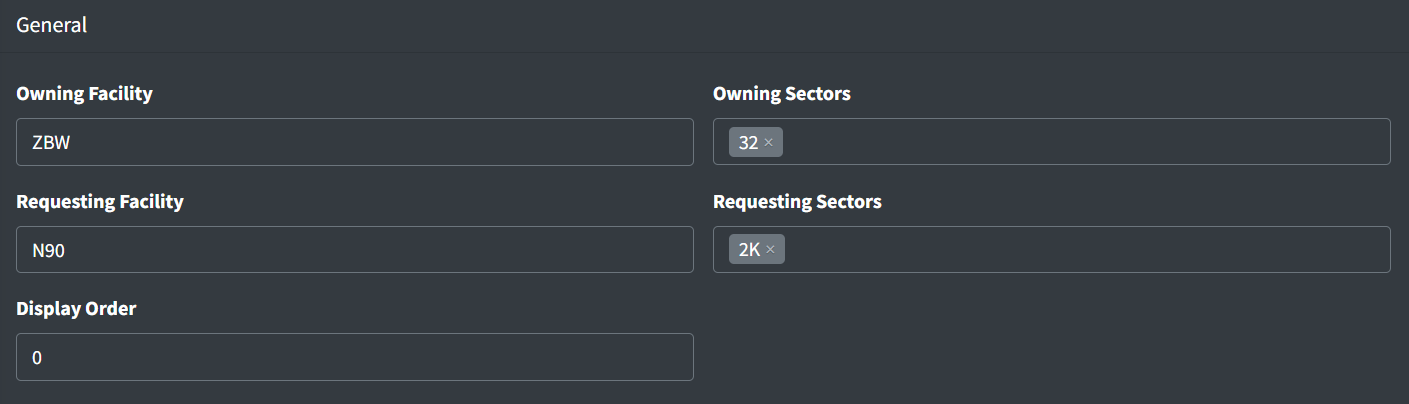

Fig. 4 - Restriction general configuration

A restriction contains the following general fields:

• Owning Facility: the facility that owns and is responsible for applying the restriction.

• Owning Sectors: an optional list of sectors within the owning facility responsible for applying the restriction.

• Requesting Facility: the facility that is requesting the coordinated items. This is typically the downstream facility.

• Requesting Sectors: an optional list of sectors within the requesting facility requesting the coordinated items.

• Display Order: a numerical value used to determine the order in which restrictions are displayed. Restrictions with lower numbers appear in lists before those with higher numbers.

Facilities cannot be updated after a restriction is created.

Criteria

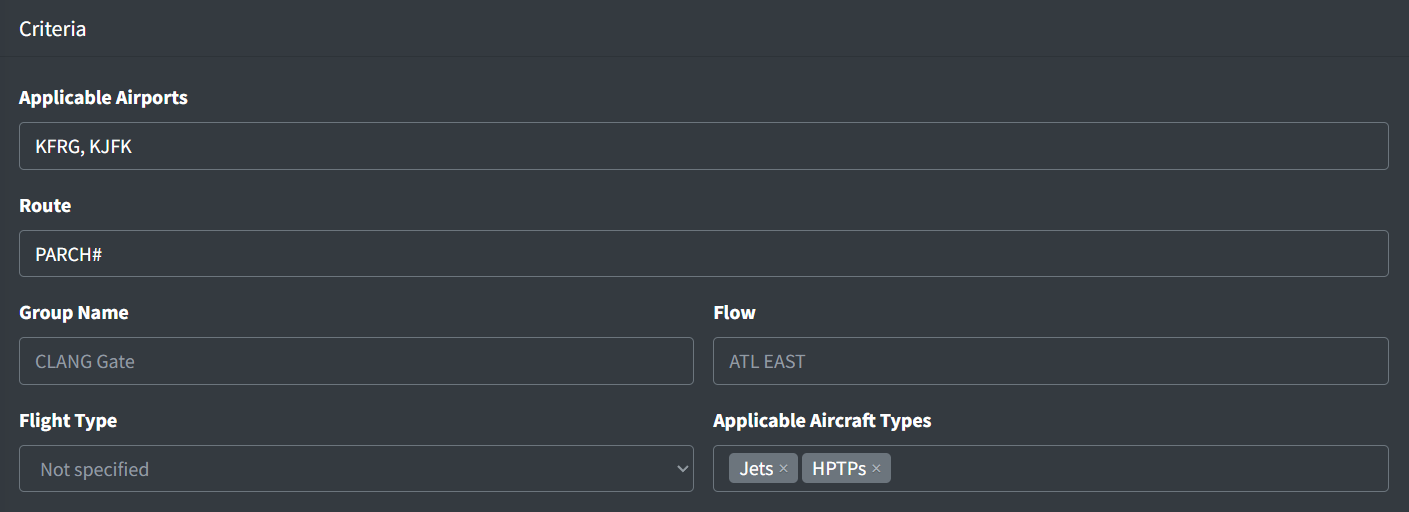

Fig. 5 - Restriction criteria

The criteria identify the aircraft to which the restriction applies. The following criteria can be specified:

• Applicable Airports: an optional comma-separated list of airports and/or airport group names to which the restriction applies. Examples include KBMG, KIND sats, and KOSU, KTZR.

• Route: an optional route string that the aircraft’s filed flight plan must match for the restriction to be applicable. Examples include Q167.ZIZZI and DEALE#.

• Group Name: an optional name of a group to which the restriction belongs.

• Flow: an optional name of an airport's flow in which the restriction applies.

• Flight Type: an optional type of flight to which the restriction applies (departures or arrivals).

• Applicable Aircraft Types: the aircraft types to which the restriction applies.

  Not specifying any aircraft types denotes the restriction is applicable to all aircraft types.

Restrictions

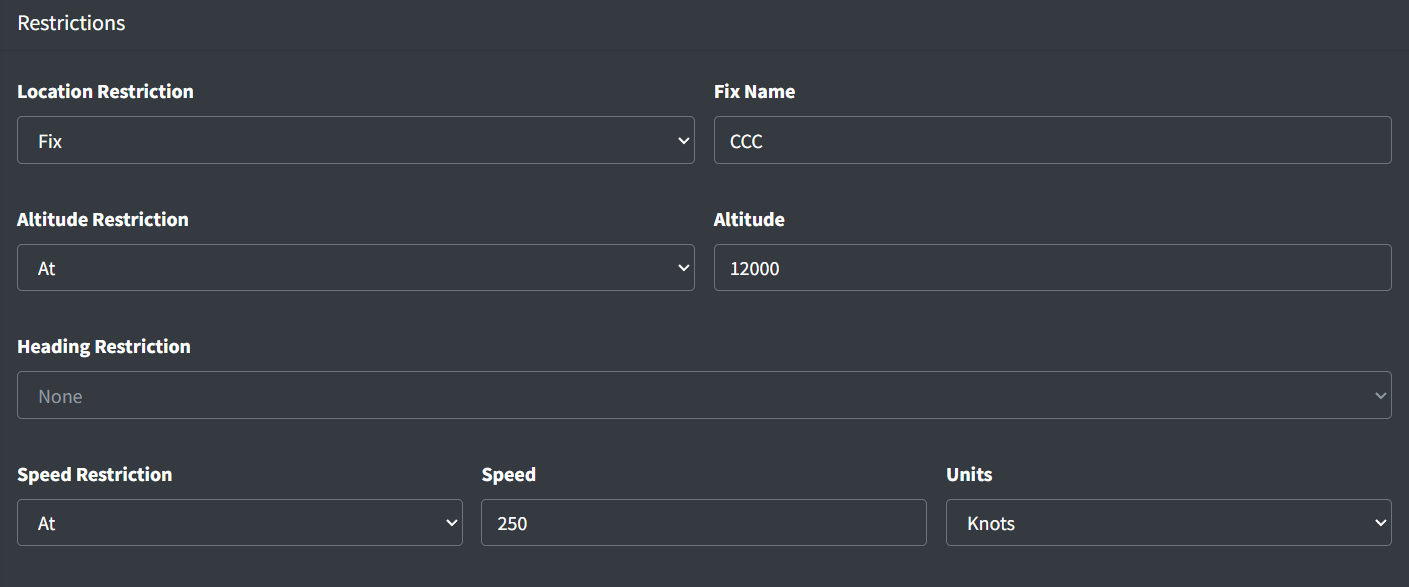

Fig. 6 - Location, altitude, and speed restrictions

The restrictions specify the coordination items that the requesting facility requests the owning facility to apply.

Location Restrictions

Location restrictions define where coordinations must occur. A location restriction can be one of the following types:

Table 1 - Location restriction options

Restriction Type	Description	Examples
Fix	At a specified fix	WAVEY, BRUWN, CCC
Boundary	The boundary between the owning and requesting facilities or sectors

Altitude Restrictions

Altitude restrictions define coordinated altitudes. Where required, an altitude restriction may be specified in feet MSL, a flight level, or the lowest usable flight level. An altitude restriction can be one of the following types:

Table 2 - Altitude restriction options

Restriction Type	Description
At	Aircraft crosses at the specified altitude
At or above	Aircraft crosses at or above the specified altitude
At or below	Aircraft crosses at or below the specified altitude
Climbing to	Aircraft is climbing to a specified altitude
At or above, climbing to	Aircraft crosses at or above the first specified altitude and is climbing to the second specified altitude
Climbing via	Aircraft is climbing via the procedure
Descending to	Aircraft is descending to a specified altitude
At or below, descending to	Aircraft crosses at or below the first specified altitude and is descending to the second specified altitude
Descending via	Aircraft is descending via the procedure
Between	Aircraft crosses at or above the first specified altitude and at or below the second specified altitude
Any of	Aircraft crosses at any of the specified altitudes
Eastbound	Aircraft is at an appropriate eastbound altitude
Westbound	Aircraft is at an appropriate westbound altitude

Altitude examples: 10000, FL240, LUFL

Heading Restrictions

Heading restrictions define coordinated headings. A heading restriction can be one of the following types:

Table 3 - Heading restriction option

Restriction Type	Description
Heading	Aircraft is flying the specified magnetic heading

Speed Restrictions

Speed restrictions define coordinated speeds. Speeds may be specified as indicated airspeed in knots, or as a Mach number. A speed restriction can be one of the following types:

Table 4 - Speed restriction options

Restriction Type	Description
At	Aircraft is at the specified speed
At or greater than	Aircraft is at or greater than the specified speed
At or less than	Aircraft is at or less than the specified speed

Notes

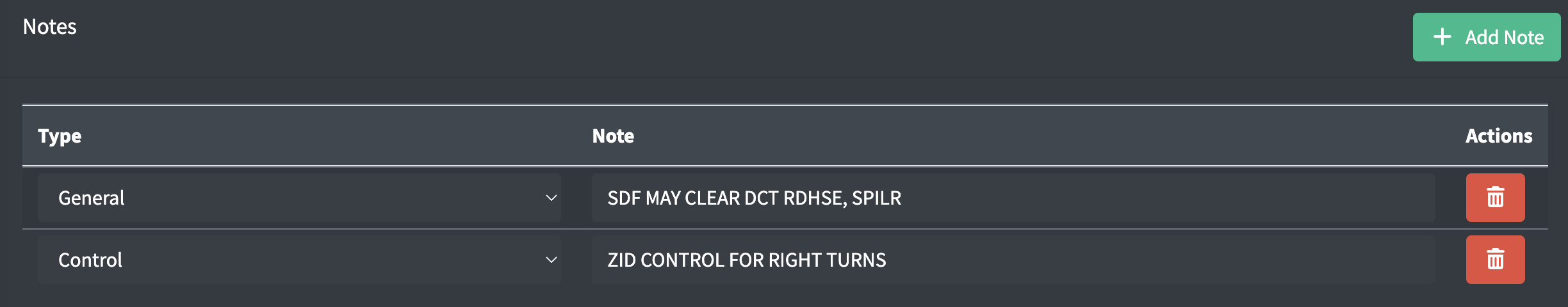

Fig. 7 - Restriction notes

Notes provide additional information regarding restrictions.

Notes contains the following fields:

• Type: the type of note

  • General: a general coordination information or context about the restriction.
  • Control: a control instruction.
  • Excludes: information specifying when the restriction does not apply.
  • Flow: information specifying the airport flows in which the restriction applies.
  • AIT: information detailing Automated Information Transfer procedures relevant to this restriction.

• Note: the text contents of the note to be displayed to controllers.
